2023 Orange Bikes Ebike Charger S Medium
B23CHS-M

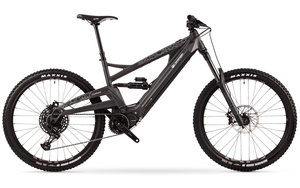

2023 Orange Bikes Charger S Gloss Charcoal Grey Medium
Shimano …
Brand New Frame designed and built in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Shimano EP8 Drive Assist
27.5 wheelset
Shimano 8036 630Wh integrated battery in downtube
Quick release battery for easy charging
Boost 148mm rear hub spacing
Orange trail honed geometry
Reduced offset fork
Long top tube short stem for high-speed stability
SHIMANO EP801 (Gen 2) FEATURES
85Nm max torque - Max assist ratio: 400%
2.6kg total weight
10% reduced volume (compared with E8000)
36% less drag (compared with E8000)
Improved ride profiles for more powerful feel on a wider range of pedal cadences
Fine tune modes with E-tube App
Improved heat managment to maintain power on long climbs
630Wh Lithium Ion integrated battery
Same 177mm Q-Factor as a standard XT crankset
New SHIMANO STEPS Satellite System On/Off Switch
4 Assist Modes (Walk/Eco/Trail/Boost)
Mechanical Walk Assist improved to the level of Intelligent Walk Assist (Di2)
FRAME AND FORK
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 145.
Swingarm Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock RockShox Super Deluxe Select 230x57.5
Headset Acros 49mm Blocklock for Tapered Steerer
Fork RockShox 35 Silver TK 160mm 27.5
DRIVETRAIN
Chain Device E13 E Spec Plus Guide
Bottom Bracket Shimano EP8 DU Integrated
Crankset Shimano M600 165 E 34t
Rear Mech SRAM SX Eagle 12spd
Chain SRAM NX Eagle
Shifters SRAM SX Eagle - Single Click
Cassette SRAM SX 1210 11-50T Eagle
WHEEL AND TYRES
Wheelset Strange Front + Hope Pro 4 Rear, E13 LG1 EN 27.5
Tyres Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 27.5
BRAKING
Brakes SRAM Guide RE 200/200
FINISHING KIT
Seatpost KS Ragei 150/170mm Drop
Seat Clamp Strange Bolted
Stem Race Face Chester M35 x 40mm
Saddle WTB Silverado SL
Handlebars RaceFace Chester 780mm M35
Grips Strange 130 Single Lock-On Black
POWER ASSIST
Control Switch Shimano EM800
Drive Display Shimano EM800
Battery Shimano E806 630wh Integrated battery Gen 2
Drive Unit Shimano EP801
