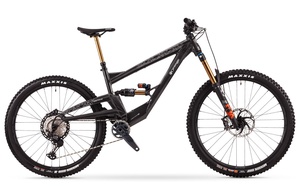

2024 Orange Bikes Switch 6 Factory Medium
B24SW6FAC-M
2024 Orange Bikes Switch 6 Factory Gloss Charcoal Grey Medium
Brand New — Lightweight Frame Handbuilt in Britain
5 Year Frame Warranty with Limited Lifetime Crash Replacement
Aggressive All-Mountain Geometry
New — Improved progressive suspension kinematics
New — On-board Orange SAFE – Store Accessories, Food & Equipment
Trunnion rear shock with 30mm shaft eyelet for bearing or bushing compatibility
Neutral pivot location allowing less drivetrain/suspension interaction
Low position offset pivot for chainring clearance
Geometry for reduced offset fork
New — Improved dropout with UDH gear hanger
New — Short seatube sizing for longer dropper-post compatibility
Boost 148x12mm rear hub spacing
New — Zero-stack tapered head-tube
Top-tube bottle/accessory mounts
Internal cable/hose routing
FRAME AND FORK
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 160.
Fork Fox Factory 36 Float 160mm 29 (black)
Swingarm Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Rear Shock Fox Float X2 Factory 205x65
Headset FPD 49mm / 56mm zerostack
DRIVETRAIN
Rear Mech Shimano XT 12spd
Chain SRAM NX Eagle
Shifters Shimano XT 12spd
Cassette Shimano XT 10-51T 12spd
Chain Device E13 Vario Compact Guide
Bottom Bracket SRAM DUB
Crankset SRAM GX Eagle 32t
WHEEL AND TYRES
Wheelset Stans Flow Mk4 + Hope Pro 5 (Black) 29 + 27
Tyres Maxxis Minion DHF 2.5 3c EXO 29/ DHR II 2.4 EXO 27.5
BRAKING
Brakes Shimano XT Trail 203/180
FINISHING KIT
Stem Burgtec Enduro Black 42.5mm
Saddle SDG Strange Bel Air III
Handlebars Renthal FatBar M35 800mm
Grips Strange Grappler Lock-On
Seatpost Fox Factory Transfer 150/175mm Drop
Seat Clamp Strange Bolted
