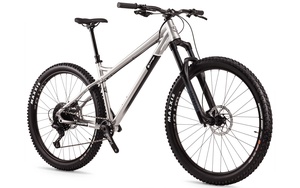

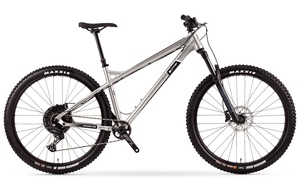

2023 Orange Bikes Crush 29 Comp Medium
B22CR29COMP-M
2023 Orange Bikes Crush 29 Comp Hardtail Sparkling Silver Medium
Brand New Frame designed in Britain
5 year frame warranty with Limited Lifetime Crash Replacement
Custom butted 6061-T6 aluminium frame
Frame geometry for 140mm travel reduced offset fork
Bolt through 12 x 148 hub spacing
New CNC Chainstay Yoke design gives clearance and strength
Tyre clearance for 29 2.6 tyres
73mm BB Shell with ISCG 05 tabs
New Tapered Head tube ZS44/ZS56
CNC Cable grommets
Minimal design cable & hose guides
FRAME AND FORK
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Swingarm Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
Headset FPD 44mm / 56mm zerostack
Fork RockShox 35 Silver TK 140mm 29
DRIVETRAIN
Shifters Shimano Deore 12spd
Cassette Sunrace CSMZ600 11-51t 12spd
Bottom Bracket Shimano Hollow Tech II
Crankset Strange Prowheel MPX 170mm Narrow Wide 32t
Rear Mech Shimano Deore 12spd
Chain KMC 12spd
WHEEL AND TYRES
Wheelset WTB ST i30 on Strange 29
Tyres Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
BRAKING
Brakes Clarks M2 180/180
FINISHING KIT
Handlebars Strange 1" Rise 780mm
Grips Strange Grappler Lock-On
Seatpost KS Ragei 150/170mm Drop
Seat Clamp Strange Bolted
Stem Strange Stalk 40mm
Saddle WTB Volt Steel
